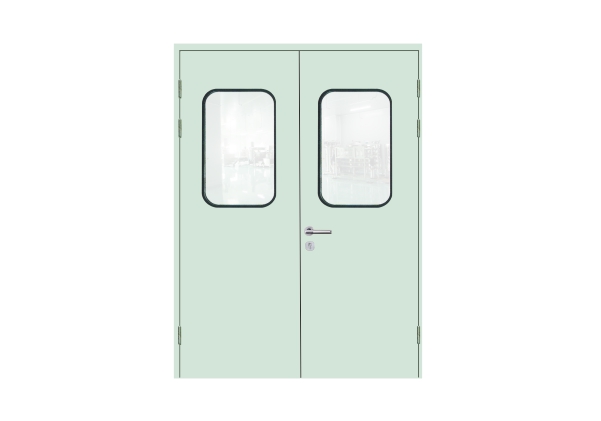

Purification Door

Product ID：1024247

Product Description

The door frame is made of SPCC 1.5mm, the door board is SPCC 1.0mm, the surface is coated, the door body is sandwiched with paper honeycomb, the thickness of the door is 50mm, which is stable, beautiful and easy to clean.

Hardware configuration:

stainless steel split lock, pressing ball lock, automatic dust bar, door closer selection.

Double-layer toughened glass window, conventional right-angle window: 400mm*600mm can be equipped with outer inner circle or arc angle window.

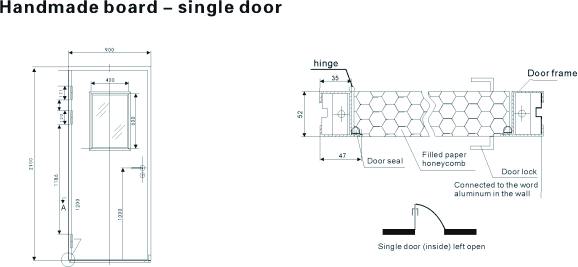

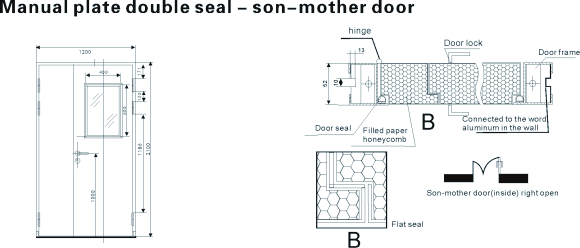

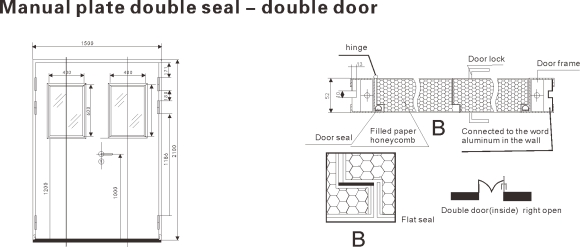

Installation sketch of manual slab door

Technical Parameter

Model Parameter	Single door	Double door	unequal double door
Steel plate thickness (mm)	0.8-1.2
Door thickness (mm)	50
Door size (W * Hmm)	900*2100	1500*2100	1200*2100
Hole size (W * Hmm)	970*2130	1570*2130	1270*2130
